Why IPS Panels Are Preferred for High-End Displays

Introduction: Why Panel Technology Still Matters in a High-Resolution World

In an era where 4K and even 8K resolution have become common marketing buzzwords, it is easy to assume that resolution alone determines display quality. However, professionals in the commercial display, digital signage, and interactive whiteboard industries know that resolution is only one piece of a much larger puzzle. What truly defines a high-end display is how accurately it reproduces color, how consistently it performs across different viewing angles, and how reliably it operates over long periods of continuous use.

This is precisely why monitor panel IPS (In-Plane Switching) technology has become the preferred choice for high-end displays worldwide. From luxury retail digital signage and corporate boardroom displays to interactive whiteboards used in education and enterprise collaboration, IPS panels continue to dominate premium segments of the market.

At Qtenboard, where we design and manufacture professional interactive flat panels and commercial displays for global clients, IPS panels are not a trend-driven decision—they are a deliberate technical choice based on long-term performance, user experience, and total cost of ownership.

But what exactly makes IPS panels so widely adopted in high-end applications? To answer that question, we need to start with the fundamentals.

IPS, or In-Plane Switching, is a type of LCD panel technology developed to overcome the limitations of earlier LCD structures, particularly TN (Twisted Nematic) panels.

In a traditional TN panel, liquid crystal molecules twist vertically when voltage is applied. While this design allows for fast response times and low manufacturing costs, it also introduces significant drawbacks: narrow viewing angles, color shifting, and inconsistent brightness when viewed off-axis.

IPS panels take a fundamentally different approach.

Instead of rotating vertically, the liquid crystal molecules in an IPS panel rotate horizontally, remaining parallel to the glass substrate. This structural change may seem subtle, but its impact on image quality is profound. By maintaining a stable molecular orientation relative to the viewer, IPS panels are able to deliver:

• Consistent color reproduction
• Minimal color shift at wide viewing angles
• More stable brightness and contrast

These characteristics make IPS particularly suitable for applications where image accuracy and visual consistency are non-negotiable.

Color accuracy is often cited as the defining advantage of IPS panels, but achieving this level of performance requires a combination of physical design, materials science, and electronic control.

At the structural level, the horizontal electric field used in IPS panels ensures that liquid crystal molecules rotate uniformly within the plane of the display. This prevents the polarization leakage commonly seen in vertically aligned structures, which is a major cause of color distortion in other panel types.

From an optical perspective, high-end IPS panels integrate multiple precision-engineered layers, including:

• Advanced compensation films to correct off-axis color deviation
• High-quality polarizers for consistent light transmission
• Quantum dot or wide-gamut color films for expanded color space

Together, these components allow each red, green, and blue subpixel to generate a spectral response that closely matches its intended value. The result is smoother gradients, more natural skin tones, and accurate reproduction of brand colors—an essential requirement in retail signage and corporate branding environments.

Professional-grade IPS displays often go a step further by incorporating hardware-level color calibration, including 3D Look-Up Tables (3D LUTs). These systems calibrate each pixel based on standardized color references, enabling ΔE values below 1—levels typically required in professional design, medical imaging, and broadcast environments.

This is one reason why Qtenboard specifies IPS panels for applications where color fidelity directly impacts communication effectiveness, whether in classrooms, conference rooms, or public information displays.

While color accuracy is the most discussed advantage, the appeal of IPS panels extends far beyond color alone.

Wide Viewing Angles Without Compromise

One of the defining features of IPS technology is its 178-degree viewing angle, both horizontally and vertically. Unlike TN or some VA panels, IPS displays maintain consistent color and brightness even when viewed from extreme angles.

In real-world commercial environments, viewers are rarely positioned directly in front of a screen. In airports, shopping malls, classrooms, and meeting rooms, audiences approach displays from multiple directions. IPS ensures that every viewer receives the same visual message, regardless of position.

Stable Image Quality for Long-Term Operation

High-end displays are often required to operate for extended hours—sometimes 16 to 24 hours per day. IPS panels are known for their long-term stability, resisting issues such as color drift and uneven aging.

For manufacturers like Qtenboard, this reliability is critical. Our customers expect interactive flat panels and digital signage to perform consistently over years of use, not just during initial installation.

Superior Touch Performance Compatibility

As touch interaction becomes standard in kiosks and interactive whiteboards, panel responsiveness plays a key role in user experience. IPS panels offer fast pixel response times and stable optical characteristics, which complement infrared or capacitive touch systems.

This combination enables smooth handwriting, low-latency interaction, and precise multi-touch recognition—essential for modern education and enterprise collaboration.

Although IPS panels are widely associated with premium displays, their value becomes most apparent in specific use cases.

Professionals Who Demand Color Accuracy

Graphic designers, video editors, photographers, and brand managers rely on accurate color representation to ensure consistency across digital and printed media. IPS panels provide the color stability and precision required for these workflows.

In healthcare, medical-grade IPS displays calibrated to DICOM standards help clinicians distinguish subtle grayscale differences, supporting more accurate diagnoses.

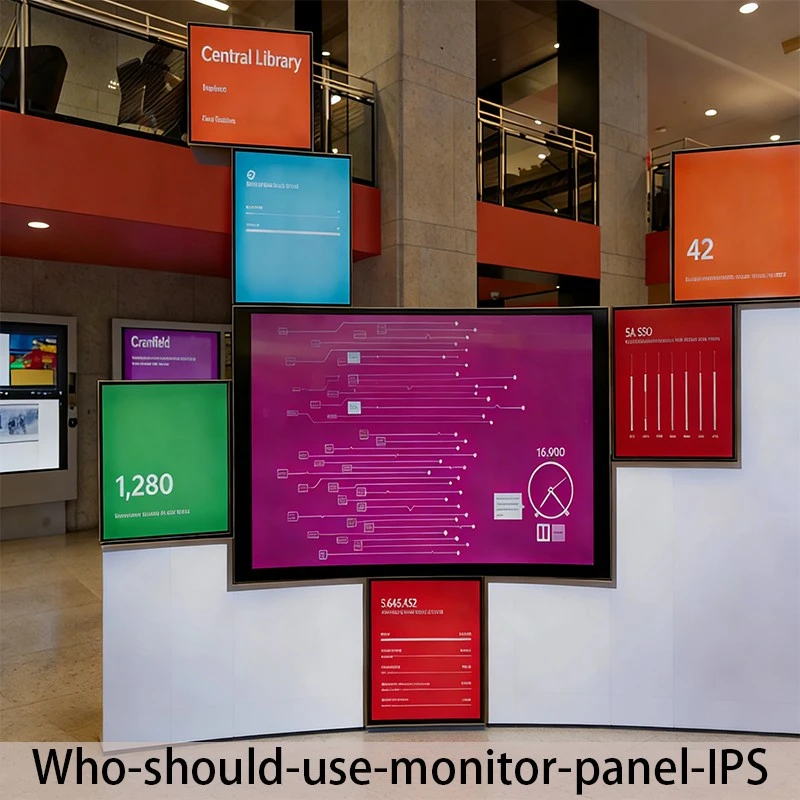

Commercial and Public Display Environments

In digital signage applications, the goal is not only to display information but to capture attention and communicate clearly. IPS panels ensure that advertising content, wayfinding information, and corporate messaging appear consistent under diverse lighting and viewing conditions.

This is why Qtenboard frequently recommends IPS-based solutions for retail chains, corporate offices, transportation hubs, and educational institutions.

Home and Prosumer Users Seeking Visual Quality

While originally developed for professional use, IPS panels have also gained popularity among home users who value image quality. For movie enthusiasts, console gamers, and content creators, IPS delivers a more immersive and visually pleasing experience.

One of the most common misconceptions in the display market is the idea that IPS and LED are competing technologies. In reality, they address different aspects of display design.

IPS refers to the LCD panel technology, while LED typically describes the backlight system used to illuminate the panel. Many high-end displays combine IPS panels with advanced LED backlighting technologies, such as Full-Array or Mini LED.

In indoor, color-critical applications, IPS remains the preferred panel choice due to its accuracy and stability. LED-based solutions, particularly direct-view LED displays, excel in ultra-high brightness and outdoor environments.

At Qtenboard, we help customers evaluate these technologies based on actual usage scenarios rather than marketing terminology, ensuring the selected solution aligns with performance expectations and budget considerations.

Recent innovations in backlighting technology have further expanded the capabilities of IPS panels. Mini LED backlighting, for example, enables higher brightness, improved contrast, and better local dimming control without sacrificing IPS’s core strengths.

This combination has made IPS-based displays viable even in environments previously dominated by other technologies, reinforcing their role in the high-end market.

From a manufacturing and solution-provider perspective, IPS panels offer a balance of performance, reliability, and scalability. While they may carry a higher upfront cost than entry-level alternatives, their long-term benefits often result in lower total cost of ownership.

At Qtenboard, our experience working with global clients has shown that IPS-based displays lead to:

• Higher customer satisfaction
• Fewer post-installation complaints
• Longer product lifecycles

These factors are particularly important in commercial and institutional projects, where displays are expected to perform consistently for years.
