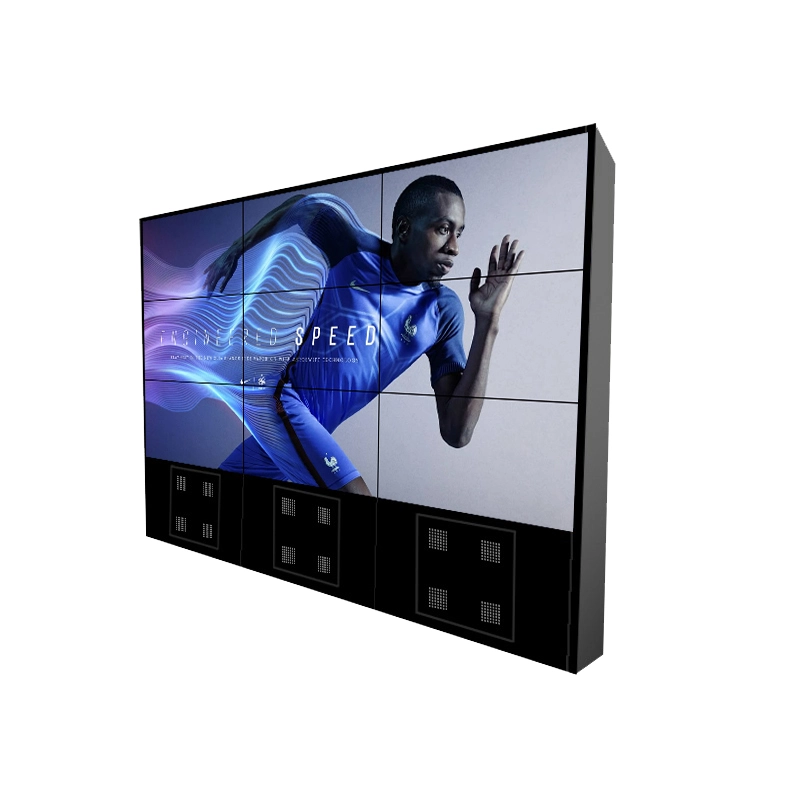

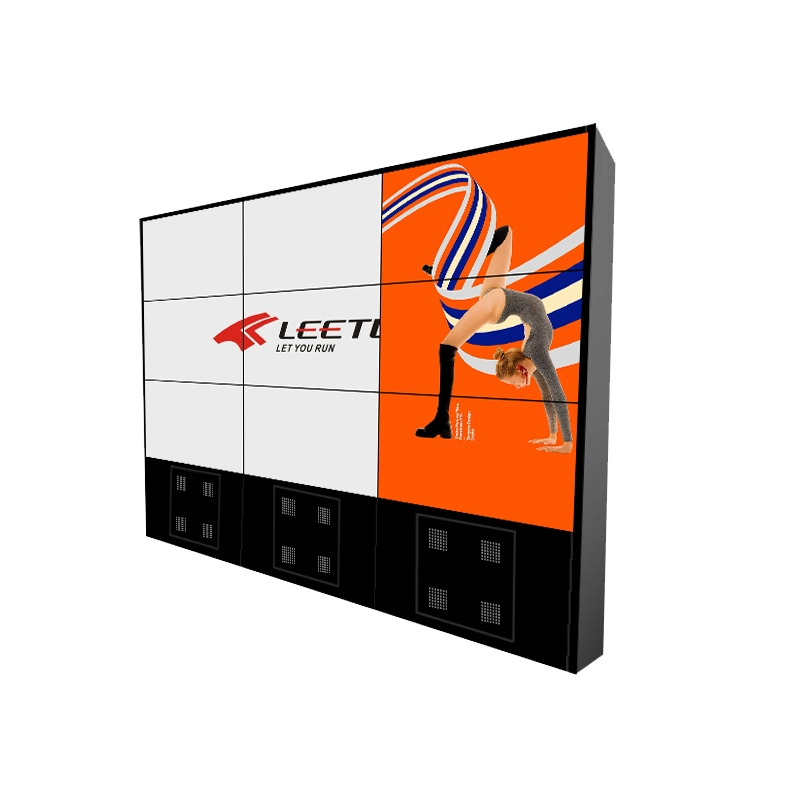

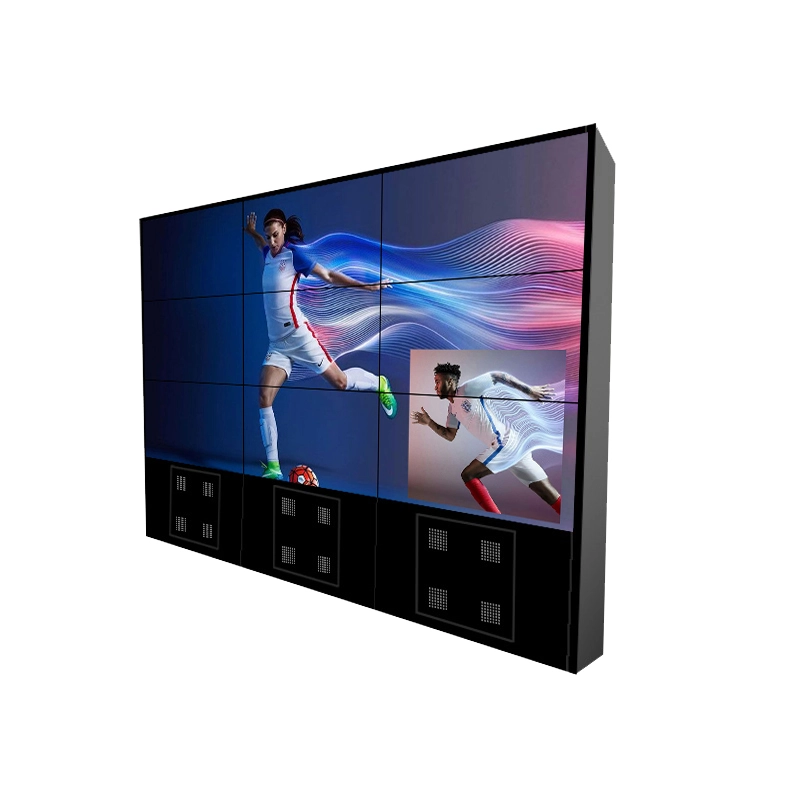

Modular Video Wall Cabinet

Main Material:cold-rolled steel
Splicing Support Specification:Arbitrary row-column combination (e.g., 2×2, 3×3)

ເກີດຂໍ້ຜິດພາດ:

This modular video wall cabinet is built with 1.5mm thick cold-rolled steel. Its adjustable beam-column structure fits mainstream video wall panels, supporting arbitrary row-column splicing with a seam accuracy of ≤0.5mm. It allows rear operations without screen removal. It bears 80kg per panel and ≥500kg overall static load. Combining flexible adaptability and high stability, it’s an ideal mounting carrier for large-screen systems in security, commercial display, government and other scenarios.

ໂປຣເເກຣມ:

Security Monitoring Industry
Commercial Display Industry
Government & Medical Industry
Industrial Manufacturing Industry

ພິສູດ ເລື່ອງແກຣມ:

Modular Video Wall Cabinet

1. Basic Product Information

Core Positioning: A standardized mounting solution for multi-size LCD video walls, supporting flexible splicing and full-cabinet side-opening maintenance, suitable for commercial display and monitoring scenarios.

2. Product Introduction

This video wall cabinet adopts a cold-rolled steel frame + modular adjustment structure design, compatible with flexible assembly of mainstream 43-65 inch video wall panels. It combines the convenience of full-cabinet side-opening maintenance with high load-bearing stability, enabling quick splicing and precise leveling. It is suitable for building large-screen display systems in security monitoring, commercial display, command centers and other scenarios, serving as a core carrier for efficient and stable video wall mounting.

3. Core Advantages

3.1 Modular Structure, Flexible Adaptation to Multi-Sizes

Adjustable beam + vertical beam combination, compatible with mainstream video wall panels, supporting arbitrary row-column splicing (e.g., 2×2, 3×3);
Finely adjustable spacing, adapting to bezel tolerances of different brand panels, with a seam alignment accuracy of ≤0.5mm.

3.2 Full-Cabinet Side-Opening Maintenance, More Convenient Operation

Interface debugging and line maintenance can be completed without removing the screen;
A single person can complete full-cabinet maintenance operations.

3.3 Cold-Rolled Steel High Load-Bearing, Stable & Vibration-Resistant

Main body made of 1.5mm thick cold-rolled steel, single-panel load-bearing up to 80kg, overall static load ≥500kg;
Double-reinforced beams + anti-toppling stoppers, resistant to slight vibrations in industrial environments, ensuring 24/7 continuous operation.

3.4 Easy Installation, Quick Leveling

Pre-installed positioning holes + snap-on connectors, 2 people can assemble the cabinet in 30 minutes.

4. Technical Parameter Table

Parameter Category	Parameter Name	Specific Specification/Description
Structural Parameters	Splicing Support Specification	Arbitrary row-column combination (e.g., 2×2, 3×3)
Material Parameters	Main Material	1.5mm thick cold-rolled steel
Load-Bearing Parameters	Single-Panel Load-Bearing	≤80kg

5. Application Industries & Scenarios

Security Monitoring Industry

Applicable to public security command centers, traffic monitoring screens, park security systems; Advantage: High stability supports 24/7 operation, side-opening maintenance adapts to compact equipment room space.

Commercial Display Industry

Applicable to mall advertising video walls, brand exhibition hall digital walls, store promotion screens; Advantage: Modular splicing supports irregular combinations, cold-rolled steel adapts to high-frequency use scenarios.

Government & Medical Industry

Applicable to government hall guide screens, hospital imaging workstations, emergency command centers; Advantage: High leveling accuracy, vibration resistance ensures stable display of medical images and government data.

Industrial Manufacturing Industry

Applicable to workshop SCADA system monitoring screens, production line visualization screens; Advantage: Corrosion-resistant cold-rolled steel, adaptable to workshop temperature differences and slight vibration environments.

6. Precautions

Confirm the ground load-bearing ≥600kg/㎡ before installation to avoid ground damage from long-term loading;
Use supporting positioning tools during splicing to ensure seam alignment accuracy;
Reserve ≥30cm opening space on the cabinet side during side-opening maintenance;
Check the tightness of cabinet connectors every 3 months to ensure long-term stable operation.
